| Parameter | Specification |
|---|---|
| Airflow Range | Up to [X] CFM |
| Fan Length | [e.g., 200 mm – 1200 mm] |
| Diameter Range | [e.g., 30 mm – 100 mm] |
| Voltage Options | 230V / 415V (Single or Three Phase) |
| Motor Options | External Rotor / Compact AC Motor |
| Speed Range | [e.g., 1000 – 3000 RPM] |
| Material Options | Aluminum / Plastic (as per application) |

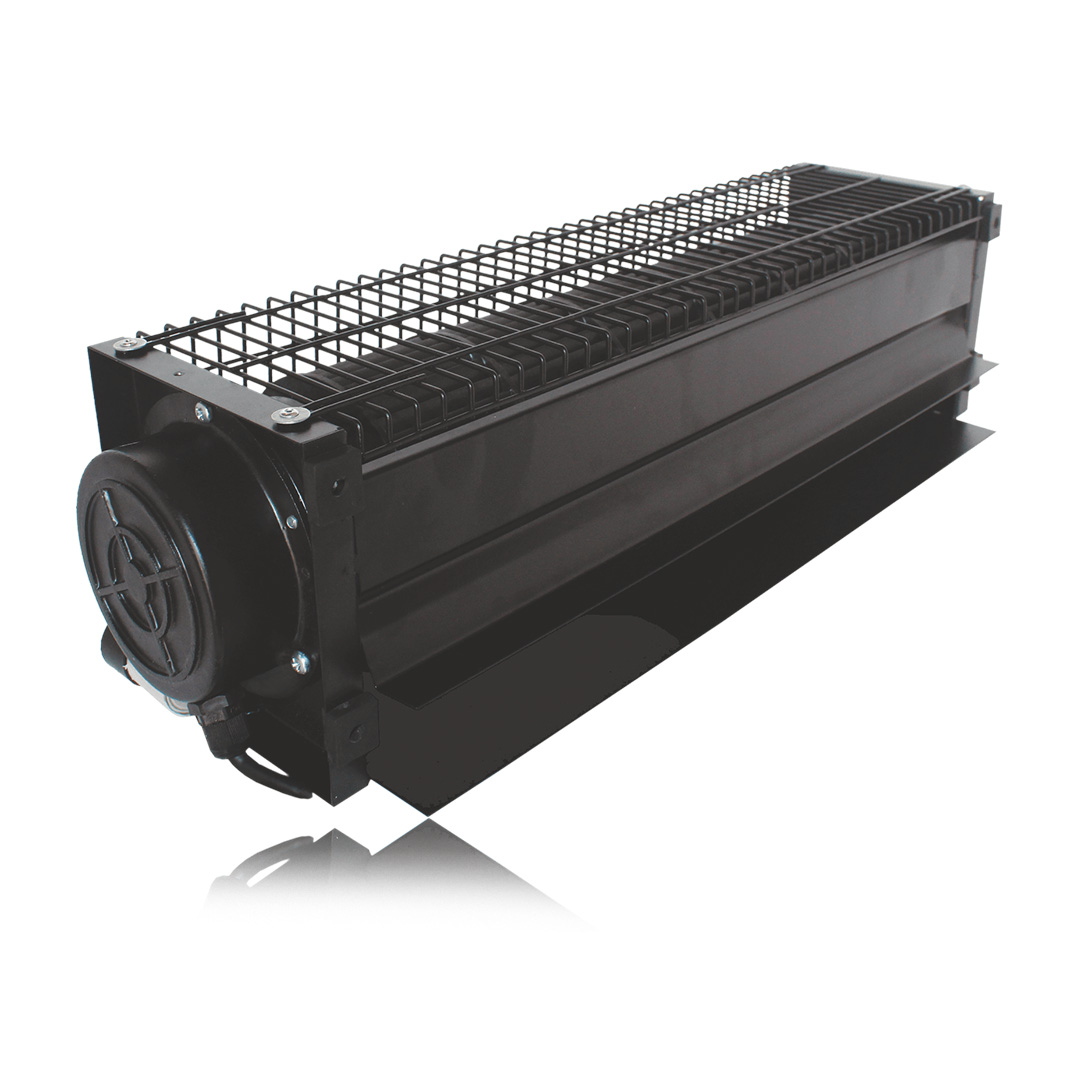

Cross Flow Fans
At VBM Enterprises, our Cross Flow Fans are engineered for applications that require uniform airflow across wide surfaces with low noise and compact dimensions. These fans are ideal for space-restricted systems and precision cooling environments where consistent airflow distribution is essential.
Designed using high-quality materials and precision-balanced components, our cross flow fans ensure quiet, stable, and efficient operation across a range of industries.
Uniform Air Curtain | Compact Air Distribution | Low Noise
Specifications:
Cross Flow Fans are presently widely used in modern Lifts with aesthetically designed roofs where the fans are concealed. These Fans are also dynamically balanced.
Key Feature
- Compact, Space-Saving Design
- Low Noise & Smooth Operation
- CE Marked & EN60335-1 Compliant
- Direct-Drive Capable — No Belt Required
- High Efficiency & Long Service Life
- Internal Thermal Protection Available
- Available in Multiple Mounting Styles & Speeds
Applications
- Axial Flow Fans
- Centrifugal Blowers
- HVAC Systems
- Refrigeration & Cooling Units
- Air Curtains & Heat Exchangers
- Electronic Equipment Cooling
- Laboratory Ventilation
- OEM Fan-Based Machinery
Why Choose Cross Flow Fans?
Even Air Distribution: Ideal for blowing air uniformly across rectangular or wide surfaces.
Compact & Versatile: Perfect for integration into narrow and compact product housings.
Low Noise Levels: Operates quietly, making it ideal for customer-facing or sensitive environments.
Stable Airflow: Maintains consistent air direction, even at varying speeds.
Customization & Engineering Support
At VBM, we offer:
Customized lengths and diameters
Motor speed and voltage variations
Mounting options to suit your device
Specialized coatings for moisture or dust resistance
Model Description
| Model No. | Impeller Dia (MM) | V | A | W | RPM | M³/HR | Noise (dBA) | Net Wt. (Kgs) |
|---|---|---|---|---|---|---|---|---|
| CF290 | 300×60 | 230 | 0.50 | 60 | 2100 | 300 | 60 | 1.75 |
| CF300 | 300×90 | 230 | 0.16 | 40 | 1250 | 450 | 55 | 3.25 |
| CF400 | 400×90 | 230 | 0.20 | 45 | 1200 | 580 | 55 | 3.50 |
Our Manufacturing Process
Precision at Every Step — From Winding to Delivery
At VBM Enterprises, every product goes through a systematic, quality-controlled process to ensure high performance, durability, and safety. Here’s how we bring excellence to every fan and motor we build:
Step 1: Coil Winding & Motor Assembly
We begin with precision winding of coils to create efficient fan motors, followed by connecting lead wires to ensure electrical integrity.
Step 2: Motor Testing
Every motor undergoes Ohm value testing to check coil resistance, ensuring proper functionality from the start.
Step 3: Hi-POT & Impulse Testing
We perform high-potential and impulse testing to verify insulation strength between coils and motor casings, enhancing product safety and reliability.
Step 4: Motor Mounting & Impeller Balancing
Change the color to match your brand or vision, add your logo and more.
Step 5: Final Assembly & Quality Checks
Impellers are assembled to the motors, followed by pre-delivery inspections checking for vibration, wattage, and current to ensure optimal performance.
Step 6: Final Testing & Packing
A final round of Hi-POT insulation testing is conducted before products are carefully packed for delivery — guaranteeing both safety and quality in transit.
