Centrifugal Blowers – Single Inlet

Parameter	Specification
Airflow Range	Up to [X] CFM
Pressure Range	Up to [X] Pa
Inlet Type	Single Inlet
Motor Options	External Rotor / Standard AC Motors
Voltage Options	230V / 415V (Single & Three Phase)
Speed Range	[e.g., 1400 / 2800 RPM]
Mounting Options	Base / Flange / Wall

Centrifugal Blowers – Single Inlet

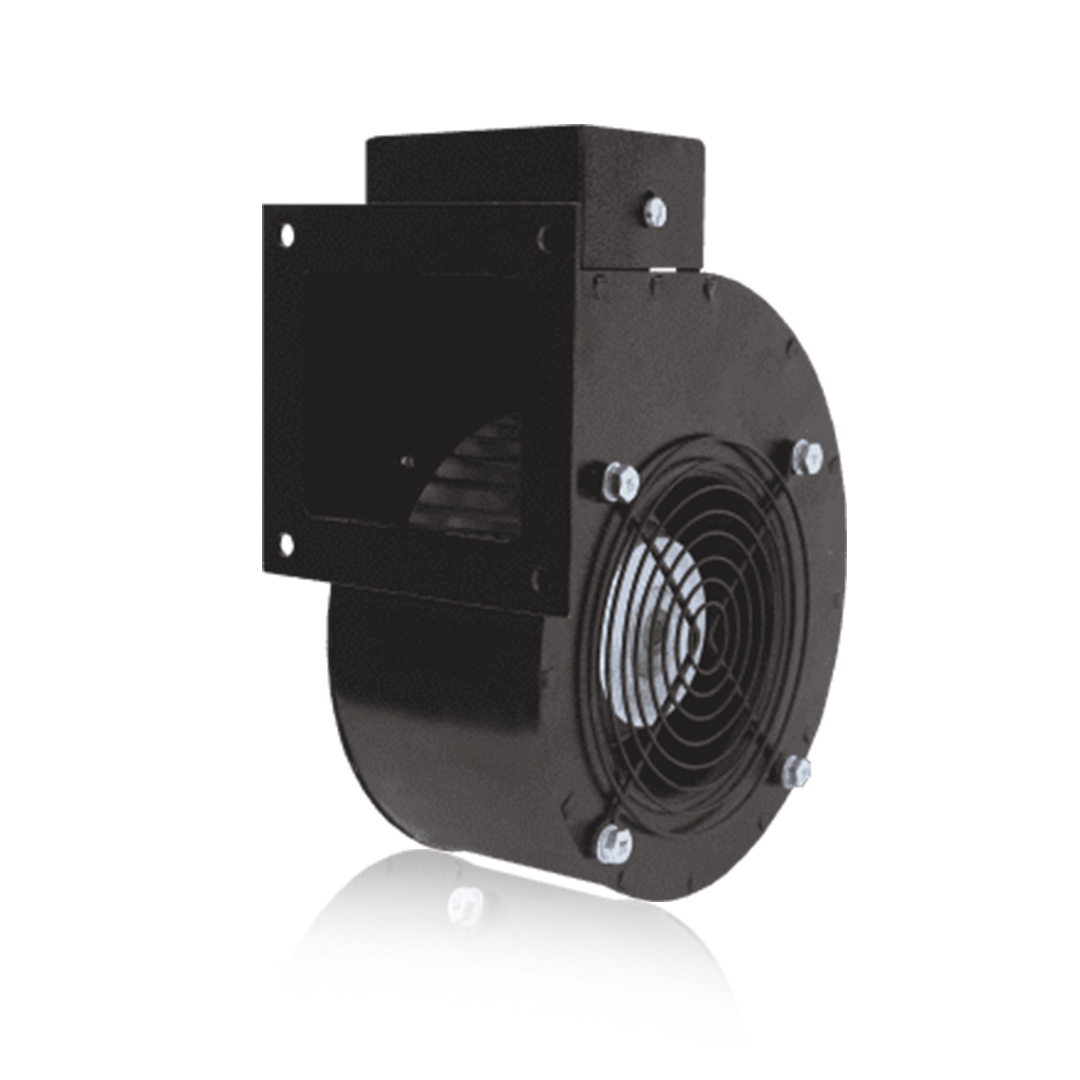

Single Inlet Centrifugal Blowers are engineered for efficiency, durability, and focused air delivery. Designed to draw air from one side of the blower and expel it at 90 degrees, these units are ideal for systems requiring directed airflow under high static pressure.

Their space-saving design, coupled with robust construction and CE-certified motors, make them perfect for a wide range of industrial and commercial ventilation applications.

Focused Flow | Space-Saving Design | Consistent Output

Specifications:

Single Inlet signifies that the air is drawn from one side of the blower only.

Key Feature

Single-Side Air Inlet Design for compact spaces
High Static Pressure Output
Backward or Forward Curved Impeller Options
Efficient Performance with Low Vibration
CE Certified Motors (External Rotor Optional)
Available in Mild Steel, Galvanized Steel, or Aluminum
Custom Casing and Mounting Available

Applications

HVAC Systems & Air Handling Units
Industrial Ovens & Dryers
Dust Collection Units
Laboratory Fume Hoods
Printing & Packaging Machinery
Exhaust Systems
Electronic Cooling Units
Textile and Pharmaceutical Equipment

Why Single Inlet?

Single inlet centrifugal blowers are ideal when space is limited and airflow direction needs to be controlled with precision. By pulling air from one side only, they provide focused suction and pressure, making them highly effective in targeted ventilation or process-specific applications.

Key Feature

At VBM Enterprises, we offer full customization options based on your specific operational requirements — including impeller size, housing material, voltage specs, and mounting orientation.

Model Description

Model No.	Impeller Dimension (MM)	V	A	W	RPM	M³/HR	Noise (dBA)	Net Wt. (Kgs)
SI23/12028	120 × 50	230	0.27	60	2500	260	62	1.75
SI23/13328	133 × 48	230	0.27	60	2200	240	68	2.5
SI44/13328	133 × 48	415	0.18	65	2250	250	68	2.5
SI23/14028	140 × 60	230	0.41	90	2550	370	70	3
SI44/14028	140 × 60	415	0.27	95	2550	380	70	3
SI23/15028 (Impeller Only)	150 × 80	230	0.59	130	2600	425	71	2.2
SI23/16028	160 × 62	230	0.72	160	2350	480	72	4
SI44/16028	160 × 62	415	0.51	180	2400	500	72	4
SI23/18014	180 × 75	230	0.41	90	1350	525	58	5.9
SI44/18014	180 × 75	415	0.31	110	1400	550	58	5.9
SI23/18028	180 × 75	230	1.18	260	2400	670	76	6.2
SI44/18028	180 × 75	415	0.85	300	2500	700	76	6.2

Model Description

Precision at Every Step — From Winding to Delivery

At VBM Enterprises, every product goes through a systematic, quality-controlled process to ensure high performance, durability, and safety. Here’s how we bring excellence to every fan and motor we build:

Step 1: Coil Winding & Motor Assembly

We begin with precision winding of coils to create efficient fan motors, followed by connecting lead wires to ensure electrical integrity.

Step 2: Motor Testing

Every motor undergoes Ohm value testing to check coil resistance, ensuring proper functionality from the start.

Step 3: Hi-POT & Impulse Testing

We perform high-potential and impulse testing to verify insulation strength between coils and motor casings, enhancing product safety and reliability.

Step 4: Motor Mounting & Impeller Balancing

Change the color to match your brand or vision, add your logo and more.

Step 5: Final Assembly & Quality Checks

Impellers are assembled to the motors, followed by pre-delivery inspections checking for vibration, wattage, and current to ensure optimal performance.

Step 6: Final Testing & Packing

A final round of Hi-POT insulation testing is conducted before products are carefully packed for delivery — guaranteeing both safety and quality in transit.
